Glassco & Danlogitech Global Series

Laboratory Heating Mantles & Extraction Units

The complete Glassco range for distillation, reflux, and Soxhlet extraction. Microprocessor PID control, Kanthal-A1 heating elements, and CE-certified safety.

STANDARD MANTLES

Hot spots causing flask breakage and sample degradation.

GLASSCO PRECISION

360° soft-touch uniform heating with ±1°C PID stability.

DIRECT FACTORY QUOTE

B2B, OEM & Institutional Bulk Inquiries Only

READY FOR EXPORT • NABL COMPLIANT • OEM MANUFACTURER

COMPREHENSIVE PRODUCT SERIES

Explore the complete 2026 Glassco & Danlogitech portfolio. Engineered for durability, thermal stability, and operator safety.

Standard Analog Series

Reliable, cost-effective heating for routine lab applications. Built with energy regulators for variable heat control.

50ml to 20,000ml
Max Temp 400°C
Powder Coated Aluminum Body

BEST SELLER

Digital PID Series

Microprocessor-controlled for precise thermal management. Features digital display for Set and Actual temperatures.

PID Temperature Controller
Accuracy ±1°C
External Probe (PT-100)

Magnetic Stirring Mantles

Integrated magnetic stirrer allows simultaneous heating and stirring. Independent control for both functions.

Speed Up to 1200 RPM
Stepless Speed Control
Durable Stirring Motor

Multi-Position Banks

Ideal for Soxhlet extraction and multiple distillations. Available in 3-bank and 6-bank configurations.

250ml - 1000ml
Individual Control for each unit
Space-saving Design

Benchmarking Table: Analog vs. PID Digital

Parameter	Analog Series	Digital (Danlogitech)
Housing Material	Spun Aluminum	Powder Coated Metal
Heating Element	Kanthal-A1 (Sweden)	Kanthal-A1 (Sweden)
Temp Range	Ambient to 400°C	Ambient to 450°C
Control Logic	Analog Energy Regulator	Microprocessor PID
Safety Features	Internal Grounding	Fuse + Software Protection

Why Dan Logitech?

Glassco: Structural Excellence

Woven Glass Fiber ensures no direct element-to-flask contact, preventing thermal shock. Chemical-resistant powder coating protects the housing against corrosive spills.

Dan logitech: Intelligent Control

Proprietary PID algorithms eliminate overshoot. Dual-display monitoring (Set Value vs Process Value) ensures your reaction stays within safety parameters.

Reliability Testing

Every unit undergoes a 48-hour burn-in test. CE and ISO certifications come standard for all global laboratory compliance requirements.

Exporting Innovation

NABL, ISO, and CE certified instruments for pharmaceutical R&D, chemical synthesis, and petroleum testing worldwide.

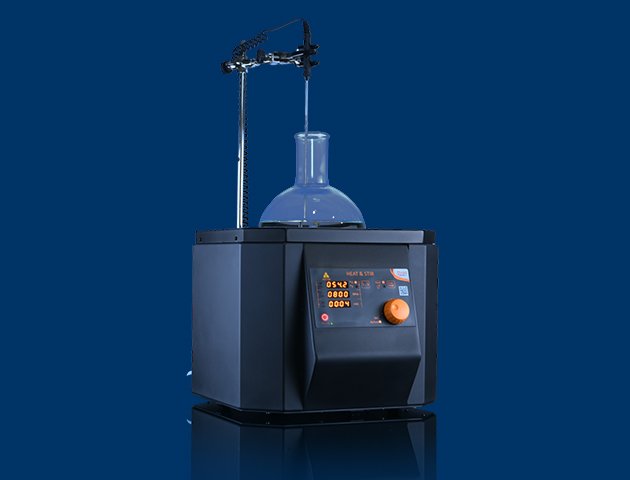

CORE LABORATORY APPLICATIONS

Distillation & Fractionation

Essential for separating components based on volatility. Our mantles provide the uniform heating necessary to maintain a constant boiling point, crucial for high-purity fractionation.

Reflux Reactions

For organic synthesis requiring long-term heating without solvent loss. The PID controllers prevent thermal runaway, ensuring stable reflux conditions for hours or days.

Soxhlet Extraction

Widely used in food science and environmental testing. Our multi-position 'Extraction Banks' are specifically designed to house Soxhlet apparatus with dedicated control for each flask.

Vacuum Distillation

Heating heat-sensitive compounds at lower pressures. The precise voltage regulation of our analog series allows for the delicate 'nudging' of temperatures required under vacuum.

PROCESS CONTROLLED

Optimized for Round Bottom Flasks
50ml — 20,000ml

Technical Comparison Matrix

Standard Specifications for Glassco/Danlogitech Production Series

Export Full Spec Sheet

Flask Capacity	Wattage (W)	Temp Range	Controller Type	Housing Material	Application
100 ml	80 W	Amb. to 400°C	Energy Regulator	Spun Aluminum	Microchemistry
500 ml	200 W	Amb. to 450°C	Digital PID / Analog	Extruded Aluminum	Standard Distillation
2000 ml	450 W	Amb. to 450°C	Digital PID with Stirring	Epoxy Coated SS/AL	Organic Synthesis
5000 ml	800 W	Amb. to 450°C	Digital Microprocessor	Industrial Grade Shell	Pilot Plant Extraction
20,000 ml	2000 W	Amb. to 450°C	Heavy Duty PID	Industrial Steel Case	Bulk Production

Note: Customized wattages and multi-position bank configurations (3, 6, 12) are manufactured upon request.

Why Glassco Power Elements Outperform Competitors

At the heart of every Danlogitech heating mantle is our proprietary Kanthal-A1 Heating Element. Unlike cheaper alternatives that use nichrome wire susceptible to brittle failure, our Kanthal elements are designed for thousands of thermal cycles up to 450°C.

Safety is paramount in chemical synthesis. Our mantles feature Double-Needle Glass Fiber Insulation which acts as a thermal barrier, keeping the outer aluminum housing cool to the touch (touch-safe) even while the inner core is at max temperature.

Internal Earthing

Integrated grounding throughout the element net and housing prevents electrical surges in case of liquid spillages or flask breakage.

PID Intelligence

Our microprocessor controllers utilize auto-tuning PID algorithms to eliminate temperature overshoot, protecting sensitive samples.

OEM & Distributor Benefits

Private Labeling

Full white-label manufacturing including customized housing colors and branding.

Inventory Priority

Tier-1 distributors get dedicated production queue slots for 24-hour dispatch.

Technical Documentation

NABL, CE, and ISO certificates provided for all local regulatory compliance.

TECHNICAL FAQ

Can the mantles operate continuously for 24/7 distillation?

Yes. Our industrial series (Danlogitech Heavy Duty) is rated for continuous operation. We recommend the Digital PID series for long-term cycles to ensure thermal stability and safety shut-off in case of power fluctuation.

Is it possible to use flat-bottom beakers?

No. Standard heating mantles are designed strictly for Round Bottom (RB) Flasks to ensure surface contact.

For flat-bottom glassware, please inquire about our Danlogitech Hot Plates or custom-formed heating blocks.

What happens if chemicals spill into the mantle?

Our heating nets are made of high-quality fiberglass which is chemically inert to most organic solvents. Additionally, the heating element is spaced to prevent short-circuiting. We recommend immediate power-off and dry-cleaning for safety.

TRUSTED BY 5,000+ LABS WORLDWIDE

Ready to upgrade your laboratory heating instrumentation?
